Product Details

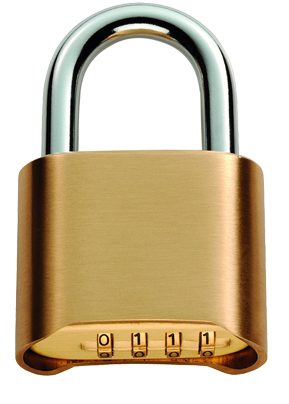

• Eurospec Combination Padlock Range. Resettable combination with key. Brass body and hardened steel shackle, 4 wheel combination. Ideal for luggage and lockers

• Suitable for domestic and commercial applications and supplied with 10 Year Mechanical Guarantee

(A) – Body Width. (B) – Body Height. (C) – Staple Gap Height. (D) – Staple Gap Width. (E) – Staple Diameter (See Tech Drawing)

CYPLC1050SB/BP – A):52.8mm B):41.4mm C):29.7mm D):25.5mm E):7.9mm (GRADE 3)

• Supplied in SINGLES

• Combination Padlocks are preset to open at ‘000’

Opening Method – The original factory-setting code is ‘0000’ – Set the code at 0000 along the line marked on the bottom of the lock.Press down the shackle, then release. It will open automatically. (Otherwise pull it up)

Locking Method – In unlocking status, press down the shackle to the end, turn code wheel to be disordered, then it is locked (or in unlocking status, turn code wheel, then press down the shackle to the end)

Setting a New Code – The padlock should be in unlocking status and the shackle should be pulled up. Insert the key to the end intothe hole which is on the right of the lock body. Turn the key 90 degrees in any direction and set a new codealong the line marked on the bottom of the lock. After setting the new code, turn the key back to the originalposition and pull out. The new code has been set
